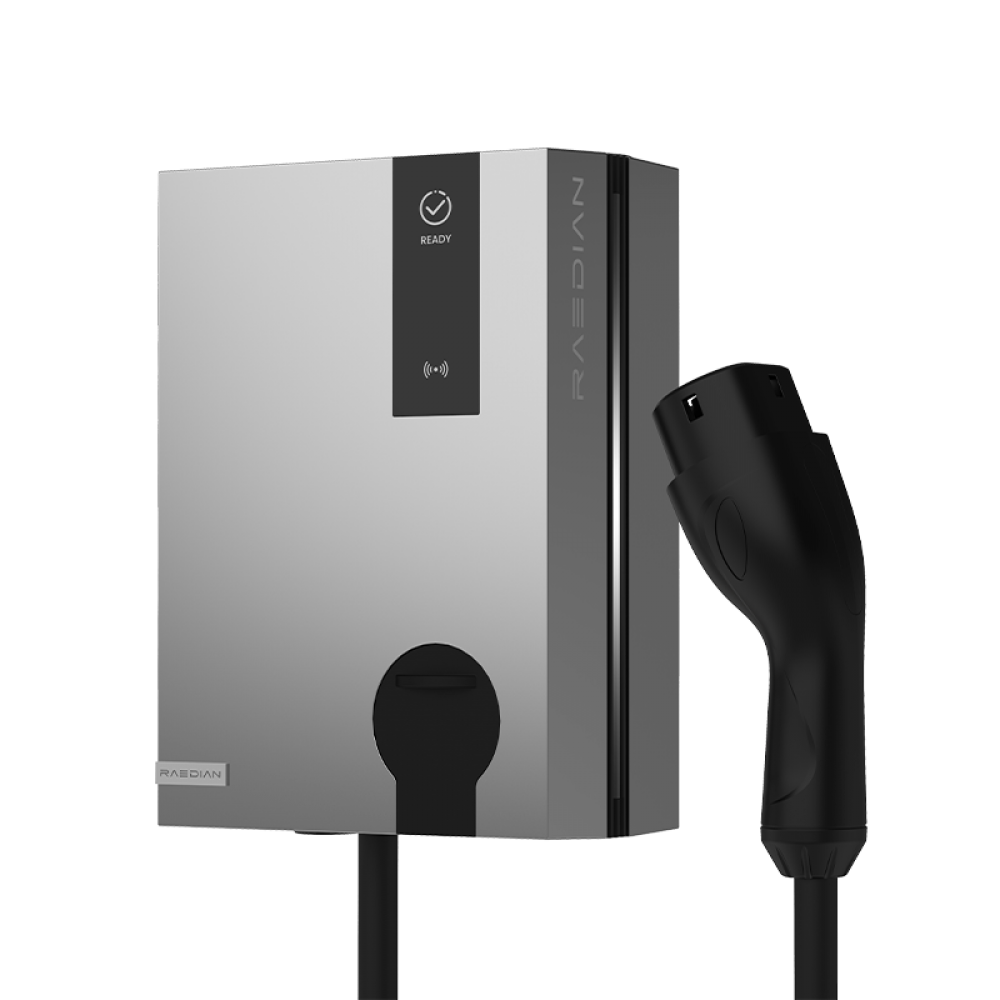

RAEDIAN NEO 7.4 kW Wallbox – Tethered 5 m Type 2, Wi-Fi/Bluetooth, RFID, Dynamic Load Balancing (single-phase)
Wi-Fi + Bluetooth
€0,00
Ir directamente a la información del producto
RAEDIAN NEO 7.4 kW Wallbox – Tethered 5 m Type 2, Wi-Fi/Bluetooth, RFID, Dynamic Load Balancing (single-phase)
€0,00
Impuestos incluidos.
- Free returns within 30 days
- 2-year warranty
- Guaranteed fit or we pay the return
Modular single-phase AC wallbox (Mode 3, IEC 62196 Type 2) with a tethered 5 m cable. Dynamic load balancing is included (via app, CT clamp or Modbus RTU/RS-485), so the charger adapts to the power your home has available. Start a session with the app or an RFID card, monitor consumption on the MID Class B certified meter, and manage everything through OCPP 1.6 JSON back-ends. Solar-charging compatible, OTA software updates, IP55 rated for indoor and outdoor installation. Professional installation by a certified electrician is required.
Not sure which connector you need?
Three rules cover almost every car on the road.
- Bought in the EU after 2018 Type 2 — almost certainly
- Japanese import, or a Nissan Leaf older than 2018 CHAdeMO
- Your port has a large round two-pin section underneath CCS — you want our CCS cables
Check your port in 10 seconds
- Open your charging flap and look at the socket, not the cable you already own.
- Count the pins in the top circle. Seven means Type 2.
- Look underneath. Two big round pins means CCS; no extra pins means Type 2 only.
| Potencia máxima | 7.4 kW |
|---|---|
| Tensión (CA) | 230 V |
| Corriente | 32.0 A |
| Fases | 1 |
| Modo de carga | AC Mode 3 |
| Conector EV | Type 2 |
| Toma del vehículo | Type 2 |
| Cable | Tethered |
| Longitud del cable | 5.0 m |
| Grado de protección (IP) | IP55 |
| Protección diferencial | Type A + 6 mA DC (IEC 62955) |
| Contador de energía | MID Class B certified, ±1% |
| Conectividad | Wi-Fi, Bluetooth, 4G (optional) |
| Autenticación | App, RFID card, Plug & Charge |
| Gestión de carga | Dynamic load balancing (DLB) included, App, CT clamp, Modbus RTU / RS-485 |
| Protocolo back-end | OCPP 1.6 JSON |
| Pantalla | OLED screen with status indicators + LED strips |
| Compatible con carga solar | Sí |
| Temperatura de funcionamiento | -30 to 55 °C |
| Anchura | 210 mm |
| Altura | 297 mm |
| Profundidad | 110 mm |
| Normas y certificaciones | IEC/EN 61851-1, IEC/EN 62955, IEC 61851-21-2, EN 61000 series (EMC), EN 300 328, EN 300 330, EN 301 908-1/-13 (radio) |
| Requiere instalación profesional | Sí |
